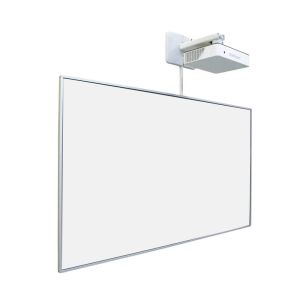

90 inch Infrared Interactive Whiteboard
Digital Whiteboards with 10 Touch
Interactive White Board with USB Interface
iBoard Infrared touch Electronic whiteboard, need to work with computer, projector to have touch and display function. Fit for classroom, meeting room use, support customized size and frame color.
| Surface | Nano, ceramic option |
| Aspect ratio | 4:3/16:10/16:9 |
| Interface | USB |
| Support OS | Windows, Android, Linux, Mac...... |
90" Interactive Whiteboard dimension for reference.
IB-90
Total Area Size: 1972 x 1181 mm
Projection Size: 1816 x 1135 mm
Total Area Diagonal Size: 90.5” Aspect Ratio: 16: 10
| Hardware Special Features | Gesture recognition |
| Technology | Infrared |
| Input Methods | Finger or any other opaque object |
| Touch Point | 10 touch points |
| Cursor Speed | 180 dot/s |
| Display ratio | 4:3 |
| Resolution | 32768 x 32768 |
| Positioning Accuracy | <2mm |
| Connecting Port | USB 2.0 |
| View Angle | Horizontal 170°, vertical 160° |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation | Wall mounted, cabinets, mobile stand (optional) |
| Warranty | 3 years |
